Thanks to the smart monitoring platform, EC full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.
» 2 MPP tracker, Max. efficiency up to 98.5%
» Zero export application, VSG application
» String intelligent monitoring (optional)
» Wide output voltage range
» Anti-PID function (Optional)

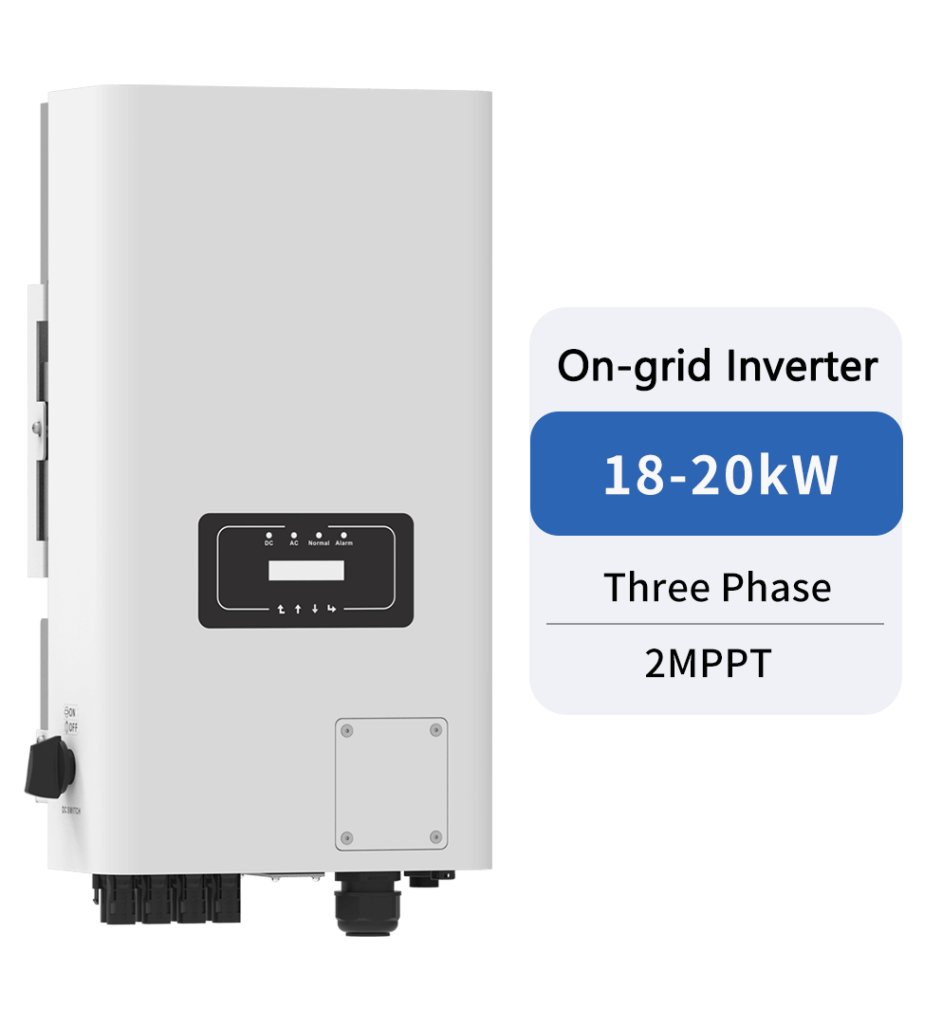

| Item | SUN-18K-G06P3-EU-BM2-P1 | SUN-20K-G06P3-EU-BM2-P1 |
|---|---|---|
| PV String Input Data | ||
| Max. PV Input Power (kW) | 27 | 30 |
| Max. PV Input Voltage (V) | 1100 | |
| Start-up Voltage (V) | 140 | |
| MPPT Voltage Range (V) | 120 - 1000 | |
| Rated PV Input Voltage (V) | 600 | |
| Max. Operating PV Input Current (A) | 32 + 32 | |
| Max. Input Short Circuit Current (A) | 48 + 48 | |
| No. of MPP Trackers / No. of Strings per MPP Tracker | 2 / 2 + 2 | |
| AC Output Side | ||
| Rated AC Output Active Power (kW) | 18 | 20 |
| Max. AC Output Apparent Power (kVA) | 19.8 | 22 |
| Rated AC Output Current (A) | 27.3 / 26.1 | 30.4 / 29 |
| Max. AC Output Current (A) | 30 / 28.7 | 33.4 / 31.9 |
| Rated Output Voltage / Range (V) | 220/380V, 230/400V · 0.85Un - 1.1Un | |
| Grid Connection Form | 3L / N / PE | |
| Rated Output Grid Frequency / Range (Hz) | 50 / 45-55, 60 / 55-65 | |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | |
| Total Current Harmonic Distortion (THDi) | < 3% | |
| DC Injection Current | < 0.5% I_n | |
| Efficiency | ||
| Max. Efficiency | 98.5% | |
| Euro Efficiency | 98.0% | |
| MPPT Efficiency | > 99% | |
| Equipment Protection | ||
| DC Reverse Polarity Protection | Yes | |
| AC Output Overcurrent Protection | Yes | |
| AC Output Overvoltage Protection | Yes | |
| AC Output Short Circuit Protection | Yes | |
| Thermal Protection | Yes | |
| Insulation Impedance Detection | Yes | |
| DC Component Monitoring | Yes | |
| Arc Fault Circuit Interrupter (AFCI) | Optional | |
| Anti-islanding Protection | Yes | |
| Residual Current Detection | Yes | |
| Surge Protection Level | TYPE II (DC), TYPE II (AC) | |
| DC Switch | Yes | |
| Interface | ||
| LCD / LED Display | LCD 1602 | |
| Monitor Mode | RS485 / RS232 / WiFi / LAN | |
| General Data | ||
| Operating Temperature Range (°C) | -25 to +60 | |
| Permissible Ambient Humidity | 0 - 100% | |
| Permissible Altitude (m) | 4000 | |
| Noise (dB) | < 45 | |
| Ingress Protection (IP) Rating | IP65 | |
| Inverter Topology | Non-Isolated | |
| Over Voltage Category | OVC II (DC), OVC III (AC) | |
| Cabinet Size (WxHxD mm) | 283 × 525 × 188 (Excluding Connectors and Brackets) | |
| Weight (kg) | 12 | |
| Warranty | Standard 5 years, extended warranty available | |
| Type of Cooling | Natural cooling | |
| Grid Regulation | IEC 61227, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | |
| Safety EMC / Standard | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 | |
