Thanks to the smart monitoring platform, EC full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.
» 65K HD Touchscreen – Easier Setup & Trouble – shooting
» Multi-language customization
» Full Protection for Stable Inverter Operation.
» 2× PV Input – Supports Direct Battery Charging
» Battery-side soft starter

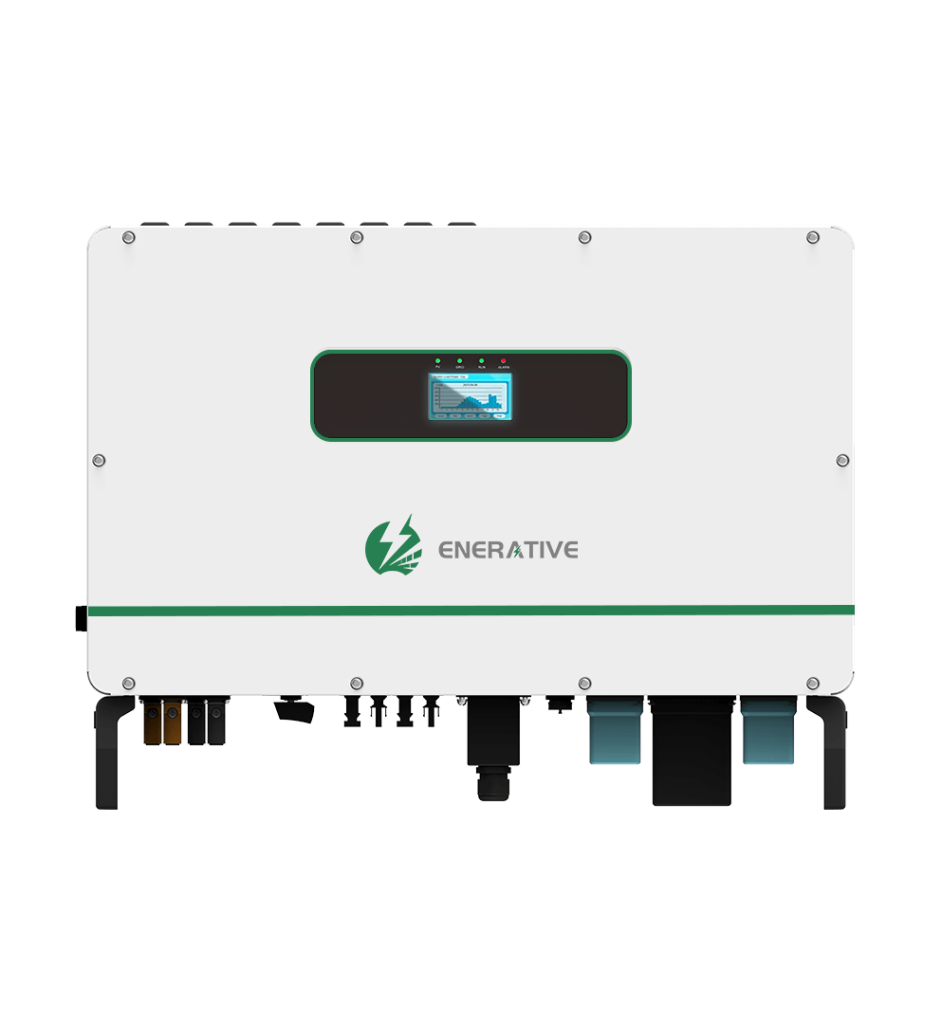

| MODEL | HB3299EH800 | HB3360EH800 | HB3408EH800 | HB3510EH800 | HB3635EH800 |
|---|---|---|---|---|---|
| PV Input | |||||
| Max PV Input Power | 60kW | 72kW | 81.6kW | 102kW | 127kW |
| Max PV Input Voltage | 1000Vdc | ||||
| PV Input Starting Voltage | 180Vdc | ||||
| MPPT Input Voltage | 150~850Vdc | ||||
| MPPT Full Load Voltage Range | 250~850Vdc | 360~850Vdc | 420~850Vdc | 420~850Vdc | 450~850Vdc |
| PV Max Input Current | 40A+40A+40A | ||||
| PV Short-circuit Current | 60A+60A+60A | ||||
| Number of MPPT / Strings Per MPPT | 3/2+2+2 | 3/2+2+2 | 3/2+2+2 | 4/2+2+2+2 | 4/2+2+2+2 |
| AC Output | |||||
| Rated Output Volt/Freq Range | 220/380Vac, 230/400Vac, 50/60Hz(±5)，Intelligent adaptive/Settable | ||||
| Grid Voltage Range | Local grid standard mode / Custom mode: 90Vac~280Vac (configurable) | ||||
| Rated Output Current | 45.3/45.3A | 54.4/52A | 61.6/59.8A | 76.9/75.6A | 95.9/91.7A |
| Max Grid-connected Current | 45.4/45.3A | 59.8/57.2A | 67.7/64.8A | 84.7/81A | 95.9/91.7A |
| Rated Grid-connected Power | 29.9kW | 36kW | 40.8kW | 51kW | 63.5kW |
| Max Grid-connected Viewing Power | 32.89kVA | 39.6kVA | 44.9kVA | 56.1kVA | 63.5kVA |
| Max Grid-connected Active Power | 29.9kW | 36kW | 40.8kW | 51kW | 63.5kW |
| DC Component | < 0.5% | ||||
| Grid Type | Three-phase, 3L+N+PE | ||||
| Output Power Factor(cosΦ) | > 0.99 @ Rated power (Adjustable 0.8 leading~0.8 lagging) | ||||
| THD | < 3% | ||||
| THDiu | < 2% (Linear load) | ||||
| Transfer Time | 10ms (Typical value) | ||||
| Off-grid Overload Capability | <110%: Long-term work，110%-120%: 1min，>120%: 10S | ||||
| Battery Input | |||||
| Battery Type | Lead-acid, lithium batteries, gel batteries, etc | ||||
| Charging Mode | 3-section Type/Equilibrium/Self-adaption BMS | ||||
| Battery Voltage | 150~800V | ||||
| Max Discharge Current | 70A~70A | ||||
| Max Charging Current | 70A~70A | ||||
| Max Charge/Discharge Power | 2 | ||||
| Efficiency | |||||
| Max PV Conversion Efficiency | 98% | ||||
| European Efficiency | 97.6% | ||||
| PV Charging Efficiency | 98.6% | ||||
| Max Battery Charging/Discharging Efficiency | 97.6% | ||||
| General Parameters | |||||
| Display | Touch Screen+LED | ||||
| Communication Mode | Standard：RS485/CAN/DRM，Optional: 4G/WIFI/GPRS/Temperature compensation module | ||||
| Protection Function | Island Protection, AC Output Overcurrent Protection, AC Short Circuit Protection, DC Reverse Connection Protection, Optional: Integrated AFCI & DC arc fault protection | ||||
| Surge Protection | DC Type II / AC Type III | ||||
| Noise (dB) | < 65 | ||||
| Cooling | Intelligent fan | ||||
| Operating Ambient Temperature | -40℃ ~ 60℃ (≥ 45℃ Derating) | ||||
| Humidity | 0~100% | ||||
| Altitude | 4000m (>3000m Derating) | ||||
| Electricity Consumption At Night | 25W | ||||
| Protection Degree | IP66 | ||||
| Installation Method | Wall-mounted | ||||
| Dimension. W*D*H(mm) | 850*300*535 | ||||
| Weight (kg) | 62 | ||||
| Warranty | 5 years standard/10 years optional | ||||
| Certifications | |||||
| Certification standard |
IEC 62109-2:2011, IEC 62109-1:2010, EN/IEC 50549-10, VDE-4105, EC 60529:1989/AMD:2013, GB/T 4208-2017 EN/IEC 61000-6-3:2021, EN 61000-3-12:2011, EN/IEC 61000-3-12:2019, EN/IEC 61000-6-1:2019, RoHS |
||||
| MODEL | HS1045EH48L | HS1055EH48L | HS1055EH48P |
|---|---|---|---|
| Battery Voltage | 48Vdc | ||
| Battery Type | Lead-acid, lithium batteries, gel batteries, etc | ||
| Output | |||
| Rated Output Power | 5000VA/4500W | 6000VA/5500W | 6000VA/5500W |
| Parallel Function | N/A | N/A | Yes, up to 10 units |
| Rated Output Voltage | 230Vac ±4% | ||
| Rated Output Frequency | 50/60Hz (±0.5%adjustable) | ||
| Output Waveform | Pure sine wave | ||
| Max Efficiency(Peak) | 93.8% | ||
| Rated Current | 19.6A | 23.9A | 23.9A |
| Transfer Time | 10ms(Typical value) | ||
| PV Input | |||
| Rated Power | 4500W | 5500W | 5500W |
| MPPT Voltage Range | 90 - 500Vdc | ||
| Max Input Voltage | 500Vdc | ||
| Max Charging Current | 80A | 100A | 100A |
| Mains/ Generator Input | |||
| Max Charging Current | 60A | ||
| AC Input Voltage Range (UPS mode) | 170 - 280Vac ±2% | ||
| Frequency Range | (47 - 55Hz) ±0.5 / (57 - 65Hz) ±0.5 | ||
| Battery Input | |||
| Voltage Range | 40 - 60Vdc | ||
| Max Charging Current | 100A | ||
| Default Charging Current | 30A | ||
| General Parameters | |||
| Dimension (W*D*H(mm)) | 470*350*125 | ||
| Installation Method | Wall-mounted | ||
| Weight (kg) | 12 | ||
| Communication Mode | RS485/Dry contact control, Optional WIFI/4G | ||
| Protection Function | Over/Under Voltage Protection, Over/Under Frequency Protection, AC Output Short Circuit Protection, AC Output Overload Protection, High/Low Temp Protection | ||
| Operating Environment | |||
| Operating Ambient Temperature | -25℃ - 40℃ (＞45℃ Derating) | ||
| Storage Ambient Temperature | -20℃ - 60℃ | ||
| Humidity | 5% - 95% Non-condensation | ||
| Altitude | 4000m (＜2000m Derating) | ||
| Protection Degree | IP20 (For indoor use only) | ||
| Certifications | |||
| Certification | CE, RoHS | ||
| Certifications standard | IEC/EN 60000 - 6 - 15, EN 62920, IEC 62470 - 1, IEC 62209 - 2, IEC 62331 | ||
| Specifications are subject to change without advance notice. | |||
| MODEL | HS1085EH48L | HS1105EH48L | HS1105EH48P | HS1120EH48L |
|---|---|---|---|---|
| Battery Voltage | 48Vdc | |||
| Battery Type | Lead-acid, lithium batteries, gel batteries, etc | |||
| Output | ||||
| Rated Output Power | 8500VA/8500W | 10500VA/10500W | 10500VA/10500W | 12000VA/12000W |
| Parallel Function | N/A | N/A | Yes, up to 10 units | N/A |
| Rated Output Voltage | 220/230Vac | |||
| Rated Output Frequency | 50/60Hz (±1 Hz, intelligent adaptive / setting) | |||
| Output Waveform | Pure sine wave | |||
| Max Efficiency(Peak) | 92% | |||
| Rated Current | 38.9A | 46.6A | 46.6A | 52.1A |
| Transfer Time | 10ms(Typical value) | |||
| PV Input | ||||
| Rated Power | 6000W-6000W | 7500W+7500W | ||
| MPPT Voltage Range | 370Vac(90 - 500V) | |||
| Max Input Voltage | 500Vdc | |||
| Max Charging Current | 180A | 200A | 200A | 200A |
| Number of MPPT Strings per MPPT | 2/1+1 | |||
| Mains/ Generator Input | ||||
| Max Charging Current | 100A | 120A | 120A | 120A |
| AC Input Voltage Range (UPS mode) | 170 - 280Vac, ±2% | |||
| Rated Frequency | 50 / 60Hz | |||
| Battery Input | ||||
| Voltage Range | 40 - 60V | |||
| Max Charging Current | 180A | 200A | 200A | 200A |
| General Parameters | ||||
| Dimension: W*D*H(mm) | 626*425*140 | |||
| Installation Method | Wall-mounted | |||
| Weight (kg) | 24 | |||
| Communication Mode | Standard: RS485 / CAN, Optional: 4G / WIFI | |||
| Protection Function | Over/Under Voltage Protection, Over/Under Frequency Protection, AC Output Short Circuit Protection, AC Output Overload Protection, High/Low Temp Protection, PV Reverse Connection Alarm | |||
| Operating Environment | ||||
| Operating Ambient Temperature | -25℃ - 40℃ (＞45℃ Derating ) | |||
| Storage Ambient Temperature | -20℃ - 60℃ | |||
| Humidity | 0% - 95% Non-condensation | |||
| Altitude | <2000m | |||
| Protection Degree | IP20 (For indoor use only) | |||
| Certifications | ||||
| Certification | CE, RoHS | |||
| Certifications standard | IEC/EN 61000 - 6 - 15, IEC/EN 61000 - 3 - 12, EN 62920, IEC 62470 - 1, IEC 62109 - 2, IEC 62331 | |||
| Specifications are subject to change without advance notice. | ||||
| MODEL | HC1030EH48L | HC1040EH48L | HC1050EH48L | HC1060EH48L |
|---|---|---|---|---|
| PV Input | ||||
| Max PV Input Power | 6000W | 4000W+4000W | 5000W+5000W | 6000W+6000W |
| Max PV Input Voltage | 500Vdc | |||
| PV Input Startup voltage | 90Vdc | |||
| MPPT Input Voltage | 120 - 425Vdc | |||
| MPPT Full Load Voltage Range | 335 - 425Vdc | 235 - 425Vdc | 295 - 425Vdc | 350 - 425Vdc |
| PV Max Input Current | 18A | 26A | 18A+18A | |
| PV Short-circuit Current | 18A+18A | |||
| Number of MPPT Strings per MPPT | 1/1 | 2/1+1 | ||
| AC Output | ||||
| Rated Output Voltage | 220V/230Vac | |||
| Output Frequency Range | 50/60Hz(±0.5), Intelligent adaptive/Settable | |||
| Rated Off-grid current | 15A | 17.4A | 21.8A | 26.1A |
| Max Off-grid Power | 3000W | 4000W | 5000W | 6000W |
| Grid - tied Power | 3000W | |||
| Output Power Type | Single Phase, L - N/PE | |||
| Output Power Factor | > 0.99 @ Rated power (Adjustable 0.8 leading - 0.8 lagging) | |||
| THDi | <3% | |||
| Transfer Time | <10ms | |||
| Off - grid Overload Capability | 101% - 110%: 30s, > 110%: 3s | |||
| Battery Input | ||||
| Battery Type | Lead - acid, lithium batteries, gel batteries, etc | |||
| Battery Voltage | 48Vdc(40V - 60V) | |||
| Max Discharge Current | 75A | 100A | 110A | 120A |
| Max Charging Current | 60A | 100A | 110A | 120A |
| Max Discharge Power | 3000W | 4000W | 5000W | 6000W |
| Max Charging Power | 3000W | 4000W | 5000W | 6000W |
| AC Input | ||||
| Max. Input Power to Battery | 3000W | 4000W | 5000W | 6000W |
| Rated Input Voltage | 150 - 280Vac (110 - 300V Optional) | |||
| Rated Input Frequency | 50/60Hz(±0.5), Intelligent adaptive/Settable | |||
| Rated Input Current | 15A | 17.4A | 21.8A | 26.1A |
| Efficiency | ||||
| Max PV Conversion Efficiency | 97.6% | |||
| European Efficiency | 96.5% | |||
| MPPT Efficiency | > 99% | |||
| General Parameters | ||||
| Display | Touch Screen+LED | |||
| Communication Mode | RS485/CAN, GPRS/WIFI/Bluetooth/4G/LAN(Optional) | |||
| Protection function | Overvoltage over and undervoltage protection, Grid over and underfrequency protection, Output short circuit/overload protection, PV reverse connection alarm, Battery overcharge and overdischarge protection, Insulation impedance protection, Ground fault protection | |||
| Noise (dB) | <55 | |||
| Cooling | Intelligent fan (IP68) | |||
| Operating Ambient Temperature | -40℃ - 60℃ (＞45℃ Derating ) | |||
| Storage Ambient Temperature | -20℃ - 60℃ | |||
| Humidity | 0 - 100% Non - condensation | |||
| Altitude | 5000m (＜2000m Derating ) | |||
| Protection Degree | IP65 | |||
| Installation Method | Wall - mounted | |||
| Dimension (W*D*H(mm)) | 320*170*440 | |||
| Gross Weight (kg) | 12 | 14 | 14.5 | 15 |
| Warranty | 5 years standard | |||
| Certifications | ||||
| Certification | CE, RoHS | |||
| Certifications standard | IEC/EN 61000 - 6 - 15, IEC/EN 61000 - 3 - 12, EN 62752, IEC 62470 - 1, IEC 62109 - 2, IEC 62331 | |||
| Specifications are subject to change without advance notice. | ||||
| MODEL | HB3299EH800 | HB3360EH800 | HB3408EH800 | HB3510EH800 | HB3635EH800 |
|---|---|---|---|---|---|
| PV Input | |||||
| Max PV Input Power | 60kW | 72kW | 81.6kW | 102kW | 127kW |
| Max PV Input Voltage | 1000Vdc | ||||
| PV Input Starting Voltage | 180Vdc | ||||
| MPPT Input Voltage | 150~850Vdc | ||||
| MPPT Full Load Voltage Range | 250~850Vdc | 360~850Vdc | 420~850Vdc | 420~850Vdc | 450~850Vdc |
| PV Max Input Current | 40A+40A+40A | ||||
| PV Short-circuit Current | 60A+60A+60A | ||||
| Number of MPPT / Strings Per MPPT | 3/2+2+2 | 3/2+2+2 | 3/2+2+2 | 4/2+2+2+2 | 4/2+2+2+2 |
| AC Output | |||||
| Rated Output Volt/Freq Range | 220/380Vac, 230/400Vac, 50/60Hz(±5)，Intelligent adaptive/Settable | ||||
| Grid Voltage Range | Local grid standard mode / Custom mode: 90Vac~280Vac (configurable) | ||||
| Rated Output Current | 45.3/45.3A | 54.4/52A | 61.6/59.8A | 76.9/75.6A | 95.9/91.7A |
| Max Grid-connected Current | 45.4/45.3A | 59.8/57.2A | 67.7/64.8A | 84.7/81A | 95.9/91.7A |
| Rated Grid-connected Power | 29.9kW | 36kW | 40.8kW | 51kW | 63.5kW |
| Max Grid-connected Viewing Power | 32.89kVA | 39.6kVA | 44.9kVA | 56.1kVA | 63.5kVA |
| Max Grid-connected Active Power | 29.9kW | 36kW | 40.8kW | 51kW | 63.5kW |
| DC Component | < 0.5% | ||||
| Grid Type | Three-phase, 3L+N+PE | ||||
| Output Power Factor(cosΦ) | > 0.99 @ Rated power (Adjustable 0.8 leading~0.8 lagging) | ||||
| THD | < 3% | ||||
| THDiu | < 2% (Linear load) | ||||
| Transfer Time | 10ms (Typical value) | ||||
| Off-grid Overload Capability | <110%: Long-term work，110%-120%: 1min，>120%: 10S | ||||
| Battery Input | |||||
| Battery Type | Lead-acid, lithium batteries, gel batteries, etc | ||||
| Charging Mode | 3-section Type/Equilibrium/Self-adaption BMS | ||||
| Battery Voltage | 150~800V | ||||
| Max Discharge Current | 70A~70A | ||||
| Max Charging Current | 70A~70A | ||||
| Max Charge/Discharge Power | 2 | ||||
| Efficiency | |||||
| Max PV Conversion Efficiency | 98% | ||||
| European Efficiency | 97.6% | ||||
| PV Charging Efficiency | 98.6% | ||||
| Max Battery Charging/Discharging Efficiency | 97.6% | ||||
| General Parameters | |||||
| Display | Touch Screen+LED | ||||
| Communication Mode | Standard：RS485/CAN/DRM，Optional: 4G/WIFI/GPRS/Temperature compensation module | ||||
| Protection Function | Island Protection, AC Output Overcurrent Protection, AC Short Circuit Protection, DC Reverse Connection Protection, Optional: Integrated AFCI & DC arc fault protection | ||||
| Surge Protection | DC Type II / AC Type III | ||||
| Noise (dB) | < 65 | ||||
| Cooling | Intelligent fan | ||||
| Operating Ambient Temperature | -40℃ ~ 60℃ (≥ 45℃ Derating) | ||||
| Humidity | 0~100% | ||||
| Altitude | 4000m (>3000m Derating) | ||||
| Electricity Consumption At Night | 25W | ||||
| Protection Degree | IP66 | ||||
| Installation Method | Wall-mounted | ||||
| Dimension. W*D*H(mm) | 850*300*535 | ||||
| Weight (kg) | 62 | ||||
| Warranty | 5 years standard/10 years optional | ||||
| Certifications | |||||
| Certification standard |
IEC 62109-2:2011, IEC 62109-1:2010, EN/IEC 50549-10, VDE-4105, EC 60529:1989/AMD:2013, GB/T 4208-2017 EN/IEC 61000-6-3:2021, EN 61000-3-12:2011, EN/IEC 61000-3-12:2019, EN/IEC 61000-6-1:2019, RoHS |
||||
We offer 5 years warranty of the solar inverters and 10 years warranty optional, the maximum life of the inverter can be more than 20 years at most.
We are building warehouse and service centers in Nigeria, Pakistan, Iraq, Phlippines, you can get more details from “Support-Service” on the website.
IEC62109, IEC/EN62109-1/2, EN61000-6-1/3, EN50549, VDE4105, CEi 0-21, UL 1741, CSA C22.2 No. 107.1-01, CQC, etc,.
Yes, it is IP66, higher grade than DEYE and Growatt.
-The maximum PV conversion efficiency is 97.6%
-EU efficiency is 97%
-MPPT efficiency: >99%
-Single phase 230VAC for residentail users;
-Three phase 380VAC for commercial users;
-Split phase 120&240VAC for US residential users;
-Three phase 480VAC for US commercial users.
Not really.
The noise of the inverter is less than 65dB, similar like the air conditioners working.
Yes, but much lower even than the phones, we have detail introduction in the Technical Topics.
In general, solar inverters are very safe electrical devices, as long as they are properly installed by professionals and selected with good quality.
It depends on the installation and use environment of the inverter. Generally speaking, it is possible. However, it is necessary to strictly follow the original manufacturer’s instructions and must be repaired by professionals.
