Thanks to the smart monitoring platform, EC full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.
» Grade-A Cells from EVE, REPT, CATL
» Pacex BMS – Trusted Domestic Brand
» 1C Charge / 0.5C Discharge – Full in Under 2 Hours
» 5000+ Cycles or 5-Year Warranty

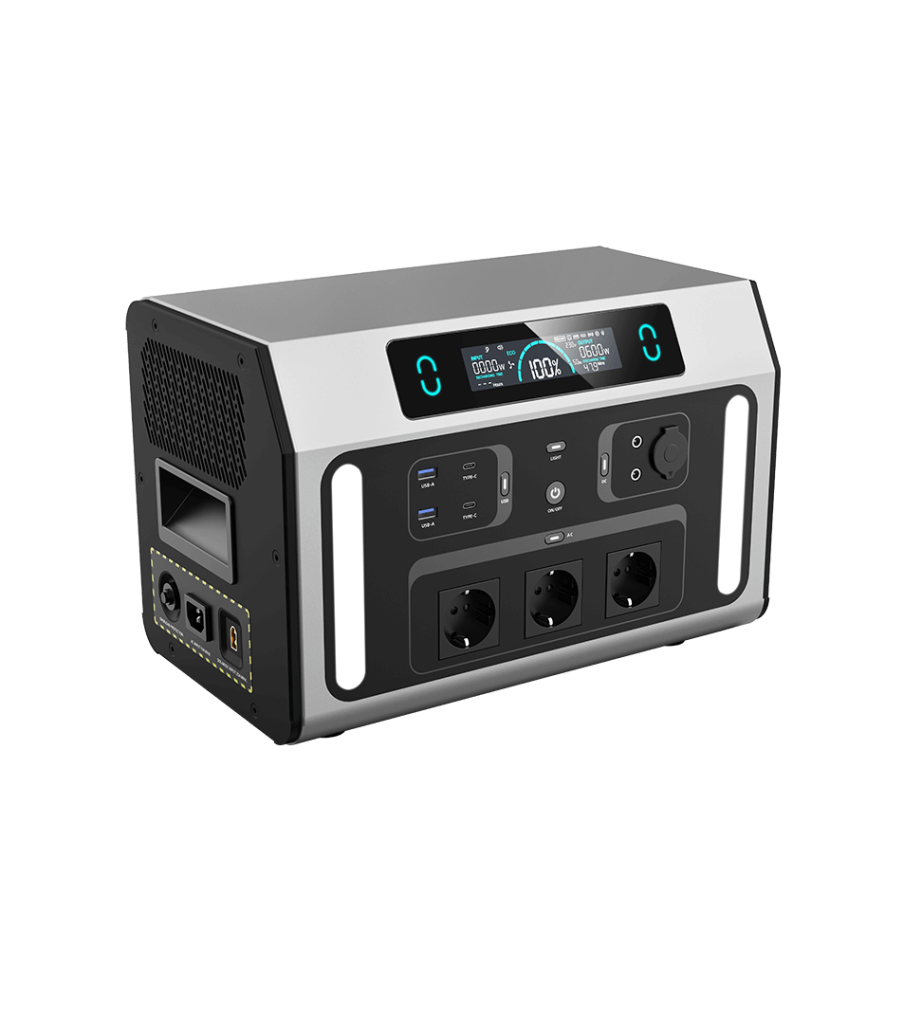

| MODEL | HPQ1300E | HPQ1500E | HPQ1800E |
|---|---|---|---|
| Battery Capacity | |||
| Battery Capacity | 1280Wh | ||
| Output Specifications | |||
| AC Output (*3) | 230Vac,5.7A,50/60Hz, 1300W(Peak 2600W) | 230Vac,6.5A,50/60Hz, 1500W(Peak 3000W) | 230Vac,7.8A,50/60Hz, 1800W(Peak 3600W) |
| AC Output Bypass Mode | 220-240Vac, 50/60Hz, 10A Max | ||
| USB-A Fastcharge Output (*2) | Single 5V/12Vdc,1.5A; 18W Max | ||
| TYPE-C Output (*2) | Single 5/9/12/15Vdc,3A; 20Vdc,5A; 100W Max | ||
| DC12V Output (*2) | Single 12Vdc,3A,36W | ||
| Car Charging Port Output | 12Vdc,10A, 120W Max | ||
| LED Emergency Lighting | 5W, 3 gear adjustment | ||
| DC12V output and car charging port sharing | Max output 120W | ||
| Input Specifications | |||
| AC Input | 220–240Vac, 50/60Hz, 10A Max | ||
| Charging Time | AC direct charging: 1.3 hours | ||
| Solar Charging Input | 11–55Vdc, Max 20A, 800W | ||
| Car Charging Input | 12/24Vdc, Max 8A, 100W | ||
| Battery Parameters | |||
| Cell Material | LiFePO4 | ||
| Battery Standard Cycle Life | 4000 cycles to 80% capacity | ||
| Protection Features | High/low temperature protection, overvoltage, undervoltage, overcurrent, short circuit, overload | ||
| General Parameters | |||
| Dimension (W×D×H mm) | 385×223×260 | ||
| Weight (kg) | 16.5 | ||
| Operating Environment | |||
| Charging Ambient Temperature | 0℃–40℃ | ||
| Discharge Ambient Temperature | -10℃–40℃ | ||
| Storage Ambient Temperature | -20℃–45℃ | ||
| Humidity | 10–95% (Non-condensing) | ||
| Altitude | < 2000m | ||
| Protection Degree | IP20 | ||
| Certifications | |||
| Authentication Certificate | CE, RoHS, UN38.3, MSDS | ||
