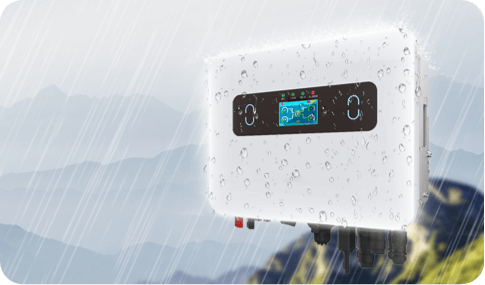

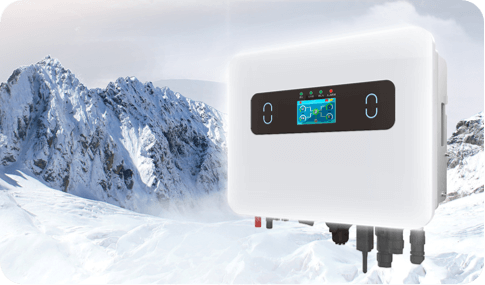

IP66 Hybrid Inverter

Split Phase | 5-12kW | 2 MPPT

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, EC full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.

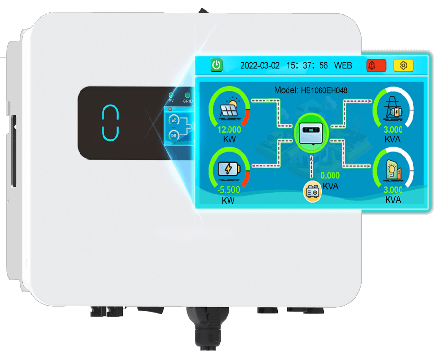

»  65K HD touch screen

»  Multi-language customization

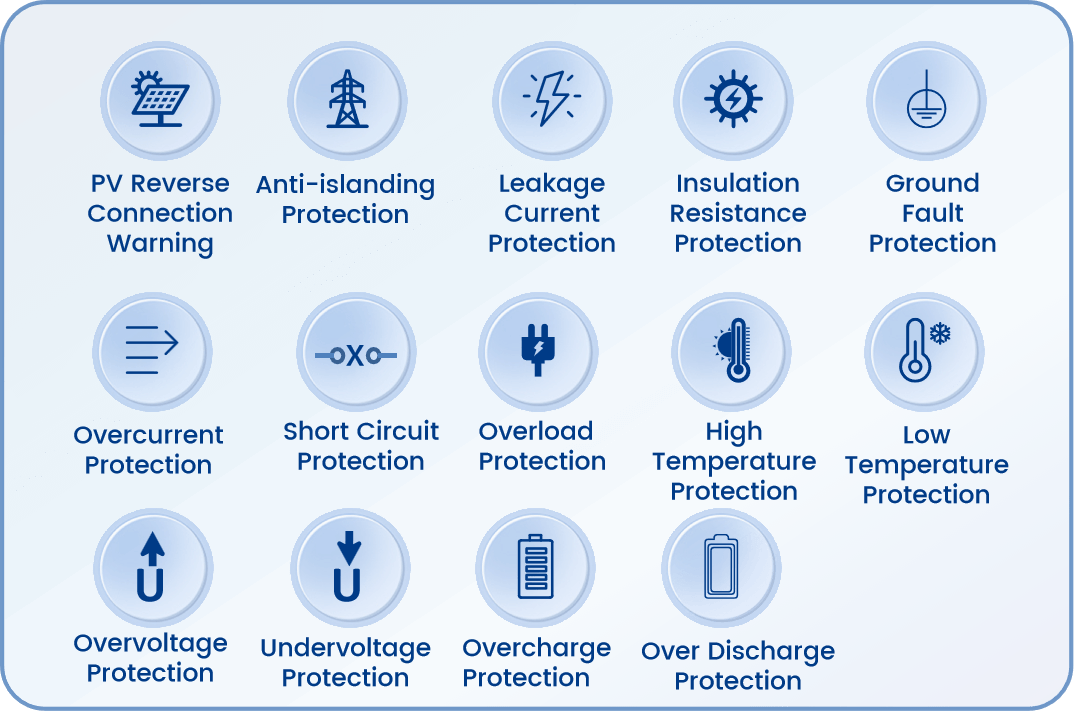

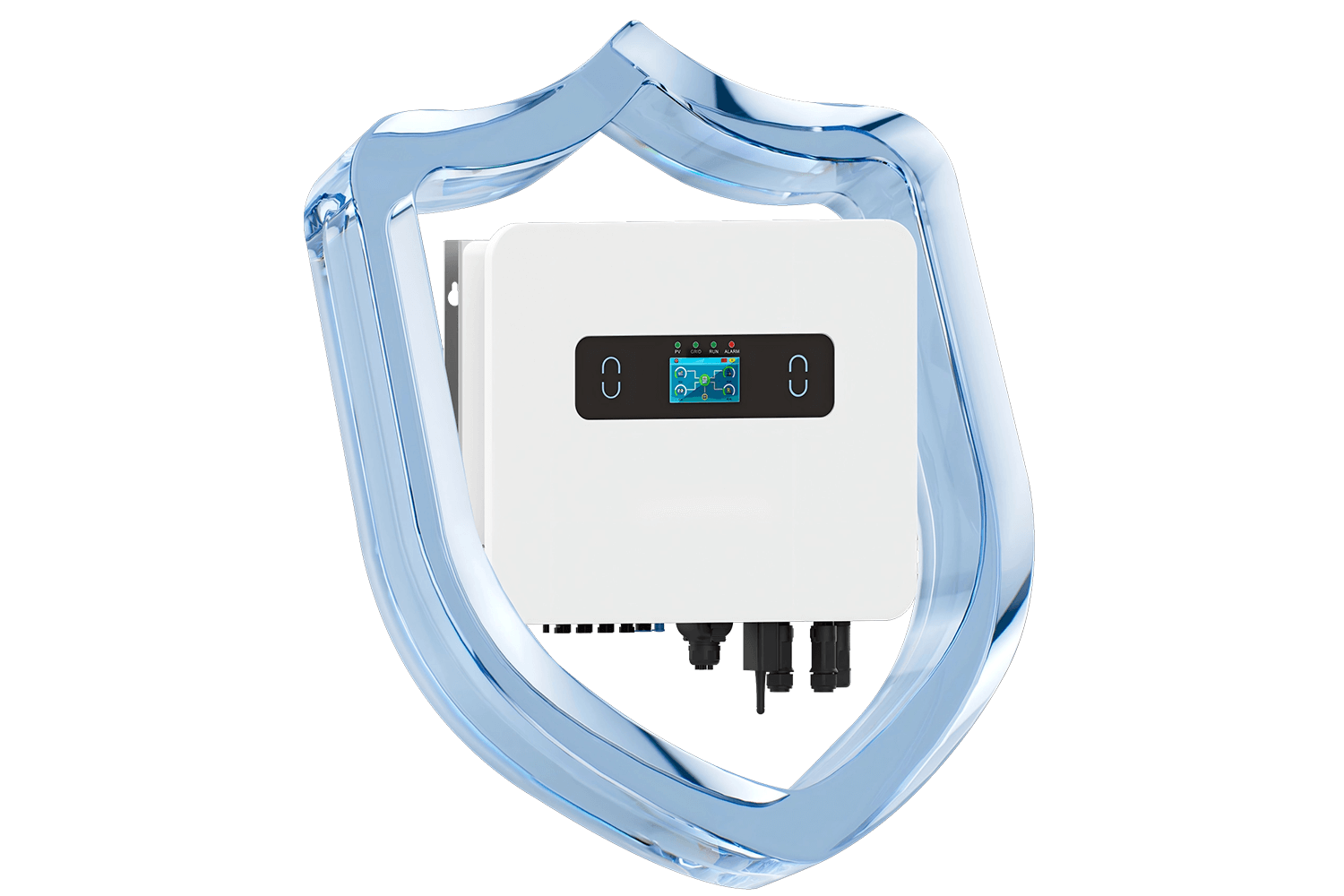

»  Multiple protection.

»  Wide output voltage range

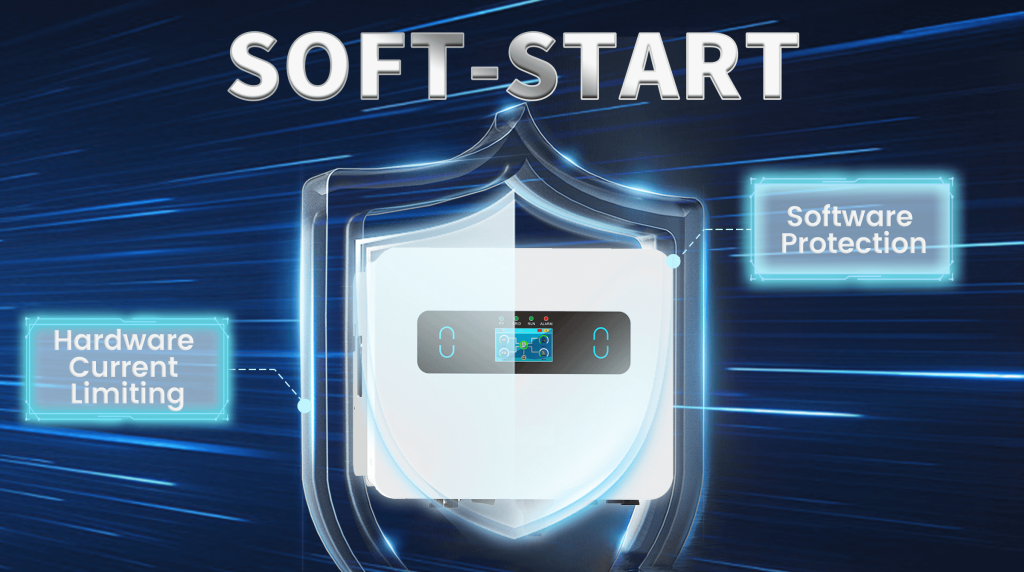

»  Battery-side soft starter

»  0ms transfer when grid off

»  5 years warranty and 10 years optional



DOWNLOAD AREA

>> Download Datasheet <<
>> Download UserManual<<
>> Download Electricity Diagram<<

Technical Specifications

HB2050UH048 ~ HB2120UH048 Parameters
HB2050UH048 ~ HB2120UH048 Parameters
MODEL HB2050UH048 HB2060UH048 HB2076UH048 HB2080UH048 HB2100UH048 HB2114UH048 HB2120UH048
PV Input
Max PV Input Power 10000W 12000W 15200W 16000W 20000W 22800W 24000W
Max PV Input Voltage 900Vdc
PV Input Starting Voltage 90Vdc
PV Input Cut-off Voltage 590Vdc(500 - 550V)
MPPT Input Voltage Range 370Vdc - 900Vdc
MPPT Full Load Voltage Range 170 - 550Vdc 210 - 550Vdc 175 - 550Vdc 185 - 550Vdc 175 - 550Vdc 200 - 550Vdc 210 - 550Vdc
PV Max Input Current 15A + 15A 17A + 17A 30A + 17A 34A + 17A 30A + 30A 34A + 34A 30A + 30A
PV Short - circuit Current 17A + 17A 19A + 19A 34A + 19A 37A + 19A 34A + 34A 37A + 37A 34A + 34A
Number of MPPT / Strings per MPPT 2/1 + 1 2/1 + 1 2/2 + 1 2/2 + 1 2/2 + 2 2/2 + 2 2/2 + 2
AC Output
AC Output Type Split Phase / 2 Phase / Single Phase
Rated Output Voltage 120/240Vac (Split Phase), 208Vac (2 phases), 200/220/230Vac (single phase)
Output Frequency 50/60Hz
Grid - connected Voltage Range Local grid standard voltage range, customizable 90 - 280Vac
Rated Output Current 20.8A/24A 25A/28.8A 31.6A/36.2A 35.3A/38.3A 41.7A/48.1A 50.4A/57.3A 50.4A/57.3A
Max Grid - connected Current 22.9A/26.4A 27.5A/31.7A 34.8A/40.2A 38.7A/42.5A 47.9A/54.1A 57.5A/64.8A 57.5A/64.8A
Rated Grid - connected Power 5500VA 6600VA 8360VA 8800VA 11000VA 12540VA 13200VA
Max Grid - connected Apparent Power 5500VA 6600VA 8360VA 8800VA 11000VA 12540VA 13200VA
Max Grid - connected Active Power 5500W 6600W 8360W 8800W 11000W 12540W 13200W
DC Component ＜0.5%Ingle
Output Power Factor(cosφ) ＞0.99 @ Rated power (Adjustable 0.8 leading - 0.8 lagging)
THDi ＜3%
Transfer Time ＜20ms(Linear load)
Off - grid Overload Copability 110%Long - term work, 110% - 125% 3min, ＞125% 10S
Battery Input
Battery Type Lead - acid, Lithium batteries, gel batteries, etc
Charging Mode 3 - section typeEqualization/Bulk/浮充Self - adoption BMS
Battery Voltage 48Vdc(40 - 60V)
Max Discharging Current 120A 150A 170A 170A 210A 250A 250A
Max Charge/Discharge Power 5000W 6000W 7600W 8000W 10000W 11400W 12000W
Efficiency
Max PV Conversion Efficiency 97.6%
European Efficiency 97.0%
MPPT Efficiency ＞99%
General Parameters
Display Touch Screen + LED
Communication Mode Standard: RS485/CAN/DRM, Optional: 4G/WIFI/GPRS
Protection Function Over/Under Volt, Over/Under Freq, AC DC SQL, Arc - fault, Bus Over/Under Volt, Leakage Our, Input, PV Reverse Polarity, Grid Fault, PV Ray Alarm
Surge Protection DC Type Ⅱ / AC Type Ⅱ
Noise(dB) ＜45
Cooling Intelligent fan
Operating Ambient Temperature - 25℃ - 60℃(＞45℃ Derating)
Humidity 0 - 100%RH
Altitude 4000m (＞2000m Derating)
Electricity Consumption At Night 15W
Protection Degree IP65
Installation Method Wall - mounted
Dimension (W×H×D)mm 420×235×670
Weight(kg) 30 35.6
Warranty 5 years standard/10 years optional
Certifications
Certification standard FCC, UL, FCC 47 CFR Part 15, UL1741, TSCA, CA65
